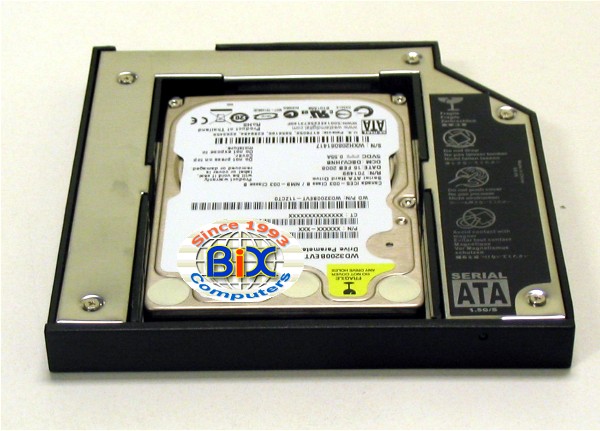

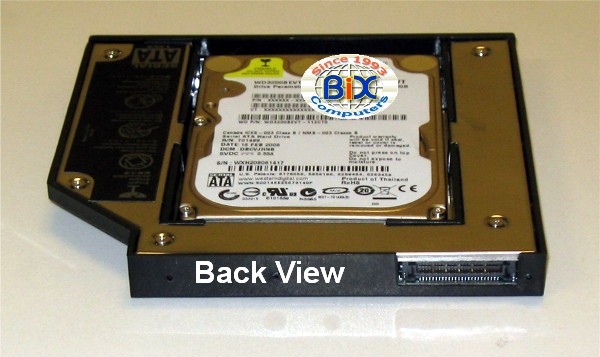

This hard drive will allow you to add a 2nd hard drive to your Dell Notebook Computers by using the optical drive bay. Simply remove your optical drive and put this hard drive in it's place, you will have an extra hard drive for your Dell notebook computer. This is an excellent solution for adding extra storage or back up data from primary hard drive.

Compatible with following Dell notebook computers:

Dell Inspiron 1501, 630m, 640m, 6400, 9300, 9400

Dell XPS M1210,XPS M1710,

Dell Precision M6300.

Hard Drive Features:

Capacity: 120GB~320GB at your selection

Rotational Speed: 5,400 rpm

Cache: 8 MB

Seek Time:
Average: 12 ms
Maximum: 22 ms





This hard drive is compatible with following Dell notebook computers:

Dell Inspiron 1501, 630m, 640m, 6400, 9300, 9400

Dell XPS M1210,XPS M1710,

Dell Precision M6300.

& More...

For more compatible models, please use our our Dell Laptop/Notebook Upgrade Guide. If this drive is directly (which means you can see "Order" button ) listed under your notebook model page, it means it should fit your notebook computer.

How to remove optical drive?
In order to install this 2nd hard drive to your Dell notebook computers, you need to remove the optical drive and install the 2nd hard drive into the optical drive bay. Here is how to remove the optical drive:

1. Follow the instructions in General Safety Guidelines for Working with Notebook Computers.

2. Turn the computer upside down and remove the M2.5 x 8-mm security screw labeled with a lock icon.



3. Insert a screwdriver into the indentation for the security screw, and push the notch on the metal tab to release the drive from the bay.

4. Pull the drive out of the drive bay.
