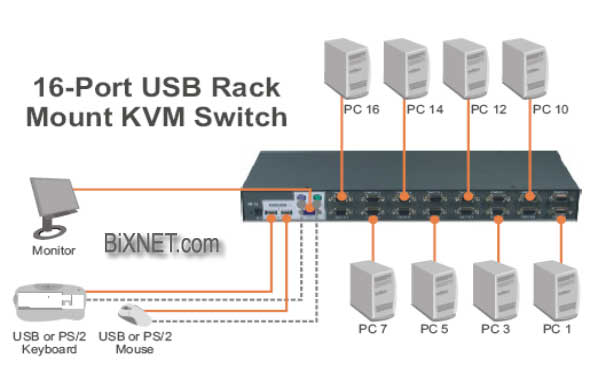

The 16-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 16-Port USB KVM Switch is the perfect choice for managing multiple PC's.
Note:KVM cables not included. You need one set USB KVM cable for each computer. For example, If you have 8 computers, then you need 8 set of USB KVM cables. We have 10 ft. and 15 ft USB KVM cables for this KVM switch listed on Accessories section below.
| Features |
- 16-Port USB KVM Switch
- Supports both USB and PS/2 Interface for console port
- Supports Microsoft IntelliMouse, IntelliMouse Explorer, Logitech NetMouse, Optical Mouse, and more
- Supports Windows 98SE/ME/2000/XP/2003 Server, Linux, Mac OS and more
- High video quality- up to 2048 x 1536 VGA resolution
- Firmware upgradeable via PC port
- Auto-Scan for monitored PCs with adjustable scan interval from 10-99 seconds
- Keyboard status restored when switching between PCs
- LEDs display for easy status monitoring
- Beeping sound for port switching confirmation (enable/disable)
- Hot-Key or push button switching
- Plug & Play and Hot-Pluggable
- Standard 19” (1U) rack mount design
- 2-Year Manufacturer Warranty
|
|
| Specifications |
| Hardware |
| Management |
16 Computers |
| Standard |
USB 1.1 Compliant |
| PC Port |
16 x VGA HDB 15-pin (female) |
Console Port
|
- 1 x USB (Type A) / PS/2 (6-pin Mini Din) Mouse
- 1 x USB (Type A) / PS/2 (6-pin Mini Din) Keyboard
- 1 x VGA HDB 15-pin (female)
|
Cable Interface
(Optional, not included) |
|
To KVM |
To PC |
- 1 x VGA HDB 15-pin (male)
|
- 1 x VGA HDB 15-pin (male)
- 1 x USB (Type A)
| |
| Supported OS |
Windows 98(SE)/ME/ 2000/XP/2003 Server
Linux, Mac and more |
| PC Selection |
Hot-Key or Push Buttons |
| Auto-Scan Interval |
10-100 seconds (Programmable through Hot-Key) |
| LEDs |
On-line (Red), Select (Green) |
| Keyboard Status |
Saved & Restored |
| Power Adapter |
9V DC 1A External Power Adapter |
| Dimensions |
407 x 165 x 45mm (16.0 x 6.5 x 1.8in.) |
| Weight |
2.04kg (4.5lb) |
| Temperature |
- Operating: 0°C~40°C (32°F~104°F)
- Storage: -20°C~60°C (-4°F~140°F)
|
| Humidity |
0%~80% (non-condensing) |
| Certification |
CE, FCC |
Note:KVM cables not included. You need one set USB KVM cable for each computer. For example, If you have 8 computers, then you need 8 set of USB KVM cables. We have 10 ft. and 15 ft USB KVM cables for this KVM switch listed on Accessories section below.
*Information provided in this document is subject to change at any time, without notice.
