4U Rack-Mount Industrial Computer System

4U 19" Rack-Mount Industrial Computer Computer System.

This computer can be used as a regular desktop computer or a rack-mount industrial computer. Its rugged construction and design make it suits for harsh environment.



Barebone starts from:

4U 19" Rack-Mount Industrial Computer Case with 450W Power Supply

Intel or Asus Motherboard for Intel Processor

Note:We build computer systems based on Intel or Asus motherboards. Due to the fast changing of computer industry, motherboards & CPU specifications are subject to change without notice. If motherboards and CPUs listed here are not available, we will substitute them with similar or better specifications.

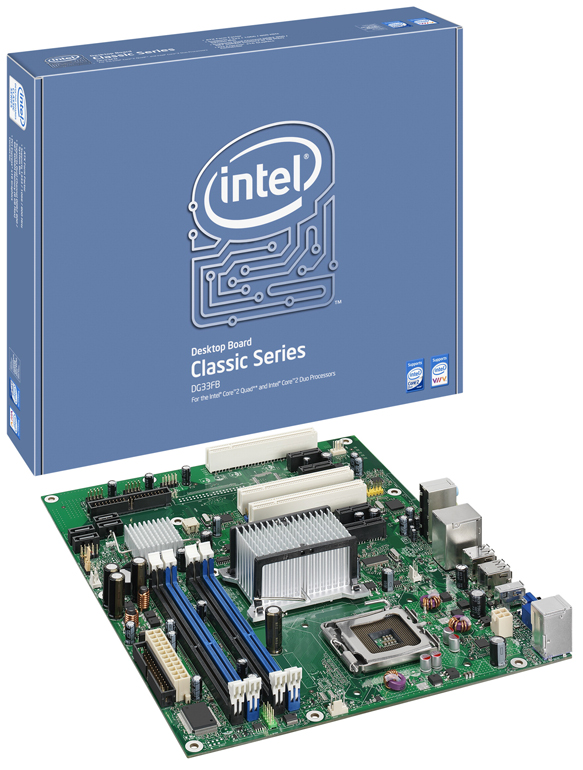

Motherboard Features:

CPU Support: Socket 775 Support Intel Core 2 Quad/ Core 2 Duo Processor; FSB 1333/1066/800 MHz

Chipset: Intel G33 & ICH9DH

Memory: 4x 240pin DDR2-800/667 DIMMs, Dual Channel, Non-ECC, Max Capacity 8GB

Slots: 1x PCI-Express x16 slot; 3x PCI-Express x1 slots; 3x PCI slots

IDE/SATA: 1x ATA-100 Channel; 4x SATA2 ports

Audio: Intel 5.1 Surround Sound High Definition Audio CODEC

Video: Intel GMA 3100 Graphics Controller

LAN: Intel PRO 10/100/1000 Gigabit Ethernet Controller

Ports: 12x USB 2.0 ports (6 rear, 6 by headers); 2x IEEE1394a ports (1 rear, 1 by header); 2x PS/2 ports; 1x Serial port header; 1x VGA; 1x RJ45 LAN port; Audio I/O Jacks

Power Connector: 1x 24pin main power, 1x 4pin CPU power

Form Factor: ATX, 11.6 x 9.6 inch / 29.46 x 24.38 cm

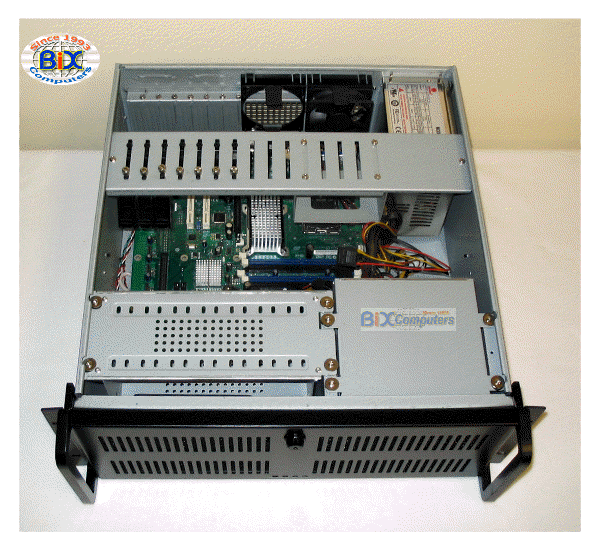

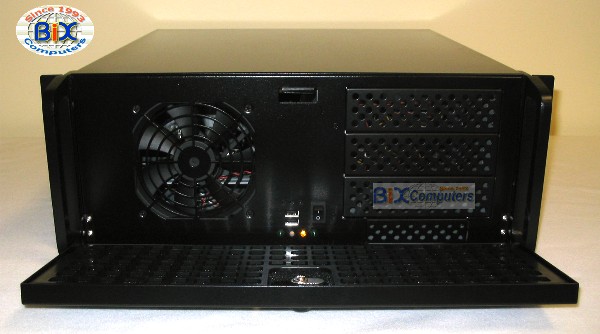

Case Features:

4U EIA RS310C Rackmount Computer/Storage Chassis .

Meets FCC/CE requirement.

Rugged construction and design for harsh industrial environment .

Dimension: (DxWxH) 500 X 483 X 177 mm (19.69" X 19" X 6.97")

Drive Bay: 5.25" X 3 , 3.5" 1 ; Internal: 3.5" X 7

Cooling: 1 X 120mm + 1 Or 2(Optional) X 80mm Fans

Support Motherboard: ATX MB (12" X 9.6")

Slot Opening: 7 Slots

Air Filter: Removable & Washable

Security: Front Doors Are Lockable

Power Supply: 400W ~ 700W at your selection

Front USB 2.0 X 2
