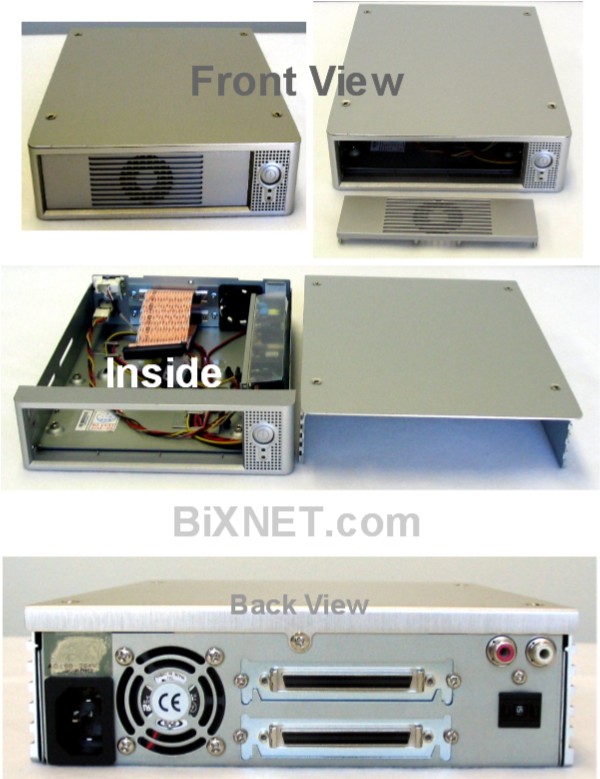

SCSI Enclosure for 3.5" & 5.25" 68-Pin SCSI3 Drive

External Enclosure Case for 3.5" or 5.25" 68-Pin SCSI Drive. 68-pin connection, supports Ultra Wide SCSI, U160/U320 . By installing a internal SCSI hard drive/CD Drive/Tape Backup Drive into this case, you have an external SCSI hard drive/CD Drive/Tape Backup Drive!

Features:

Fit 3.5" or 5.25" 68-pin SCSI Drives such as hard drives, Optical Drives(CD/DVD/+RW/-RW), Tape backup Drives

80-pin SCSI drive can also use this enclosure by using optional 80-Pin to 68-Pin SCSI Adapter.

50-Pin SCSI drive can also use this enclosure by using optional 50-Pin to 68-Pin Internal SCSI Adapter.

High-quality hair-line liked and anodized for strengthen material

Rugged Aluminum housing for excellent air-flow

Smallest housing dimension with internal 50W Switching Power Supply

Optional extra cooling fan on front panel for high-capacity HDD

Design for 5.25" Devices (CD/DVD/+RW/-RW) or 3.5" Hard Drive

Suitable for PC, Mac, Notebook or Desktop
Specification:
Material:

Front Panel: Plastic ABS UL 94HB

Outer Case: Aluminum

Inner Case & Real panel: Aluminum
Cooling Fan:40 x 40 x 10 mm +12V DC
Dimension (WxDxH):7.68 x 9.88 x 2.26 inch
Power Supply:Internal Universal Switching Power Supply. UL, FCC, CE, Tܖ Approval



Although this enclosure has 68-pin SCSI internal cable for connecting 68-Pin SCSI drives, you can use it for SCA 80-Pin drives with SCA 80 Pin SCSI to 68-Pin SCSI Adapter. You can also use it for 50-Pin SCSI Drive with SCSI-1 to SCSI-3 Internal Adapter (FF)

Power cord included, External SCSI cable not included

How to connect SCSI ID switch?
This enclosure has a SCSI ID switch on the back, you can change the SCSI drive ID by simply push the SCSI ID switch. In order to use this SCSI ID switch, you need to connect the SCSI ID switch to your SCSI drive. Here is how to do it:

1. Find SCSI ID jumpers on your SCSI drive. If you don't know where is the SCSI ID jumpers, please contact with the SCSI drive manufacturers or visit their website to find out.

2. For 68-pin SCSI drive, there are 4 SCSI ID jumpers: ID 0, ID 1, ID 2, ID 3. To connect the SCSI ID switch to the jumpers, please connect the Brown cable to ID 0, Red cable to ID 1, Yellow cable to ID 2, Gray cable to ID 3, Black cable to Ground (all 4 ID jumpers ground are linked, so you can connect ground cable to any of ID jumper's ground).

3. For 50-pin SCSI drive, there are only 3 SCSI ID jumpers: ID 0, ID 1, ID 2. To connect the SCSI ID switch to the jumpers, please connect the Brown cable to ID 0, Red cable to ID 1, Yellow cable to ID 2, Black cable to Ground(all 3 ID jumpers ground are linked, so you can connect ground cable to any of ID jumper's ground).

4. If you have located the SCSI ID jumpers on your SCSI drive, but you are not sure which row is ground, you can figure it out this way: if you use the top row jumpers as SCSI ID jumpers and bottom row jumpers as ground, but the SCSI ID switch # does not change the SCSI ID correctly, then try use the top row jumpers as ground and bottom jumpers as SCSI ID jumpers.

Note:You can also use this enclosure if you have a 80-Pin SCSI drive by using optional 80-Pin to 68-Pin SCSI Adapter
