Internal Slim DVD Writer DVD Burner Drive for Dell Notebooks 8X -D003



Internal Slim DVD Writer DVD Burner Drive for Dell Notebooks 8X -D003
Item #: NB-DVDRW-D003
In Stock - Ready to Ship
Condition: New
Warranty: 1 Year
Options

Regular price:

$149.00

Sale price:

$69.95

Qty:



DescriptionInstallation GuideReviewsSpecial NotesAdditional Info
Internal Slim DVD +/-RW & CD-RW Combo Drive for Dell Notebooks. 8X Double Layer

This drive works for:
  • Dell Latitude D Series, such as:
    Latitude D400, D410
    Latitude D500, D505, D510,
    Latitude D600, D605, D610
    Latitude D800, D805, D810
  • Del Latitude X300
  • Dell Inspiron 8500, 8600, 9100
  • Dell Inspiron 300m, 500m, 505m, 510m, 600m, 605m
  • Dell Inspiron XPS
  • Dell Precision M20, M60, M70

    Options: You can order "Bare Drive Only" or "Drive with Caddy Kit". To install the bare drive into your laptop, you need to re-use your current CD drive caddy kit(mounting frame and adapter). If you do not have the required frame and adapter, you can select the "Drive with Caddy Kit" in the options window.

    This is the optional caddy kit we are talking about:


    Click here to see "Dell Notebook Optical Drive Caddy Kit -D003".

    This powerful storage device is a functional technology that enables PC manufacturers to deliver unprecedented DVD and CD computing capabilities in their mobile devices. Until now, only desktop computers have had the luxury of DVD recordability for applications such as audio/video editing and personal digital compilations.

    <Features:
  • Supports for DVD+R/+RW, DVD-R/-RW, disc read & write
  • DVD+R Double Layer 2.4X
  • Defect management for reliable data writing
  • Buffer Under Run Free Technology

    Specifications:
  • Data Transfer Rate Read CD: 3.6 MB/sec (24x)
  • Data Transfer Rate Read DVD: 10.8 MB/sec (8x)
  • Data Transfer Rate Write on CD Record: 3.6 MB/sec (24x)
  • Data Transfer Rate Write on CD Rewritable: 3.6 MB/sec (24x)
  • Data Transfer Rate Write on DVD-R: 10.8 MB/sec (8x)
  • Data Transfer Rate Write on DVD+R: 10.8 MB/sec (8x)
  • Data Transfer Rate Write on DVD-RW: 5.4 MB/sec (4x)
  • Data Transfer Rate Write on DVD+RW: 5.4 MB/sec (4x)
  • Double Layer: 2.4x write, 8x read
  • Data Transfer Rate Write on DVD-RAM: 5x write
  • Burst Transfer Rate PIO Mode 4: (16.6 MB/sec)
  • Burst Transfer Rate DMA Mode 2: (16.6 MB/sec)
  • Burst Transfer Rate Ultra DMA Mode 2: (33.3 MB/sec)
  • Recording Capacity CD-RW Disc: 700/650MB (Type 80/74)
  • Recording Capacity CD-R Disc: 800/700/650MB (Type 90/80/74)
  • Average Seek Time DVD-ROM: 110ms
  • Average Seek Time CD-ROM: 110ms
  • Drive Type: Internal
  • Interface: EIDE / ATAPI
  • Dimensions (WxHxDmm): 128 x 12.7 x 127
  • Buffer Memory: 2MB
  • Drive Mounting: horizontal/vertical
  • Supported Disc: DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-VIDEO, DVD-ROM, DVD-RAM, CD-R, CD-RW, CD-ROM, CD-ROM/XA, CD-Audio, Video-CD, Photo CD, CD-I(FMV), CD-Extra, CD-TEXT

    Compatibility: MPC Level 3, MultiRead, PC2001

    Special Features: Vertical Operation Possible, Anti-Dust Seal, Anti "Buffer Under Run Error" system

    You can check our Laptop/Notebook Upgrade Guide. If this drive is directly (which means you can see "Order" button ) listed under your notebook model page, it means it should fit your notebook computer.

  • Overall Rating for Internal Slim DVD Writer DVD Burner Drive for Dell Notebooks 8X -D003
    (no reviews)Be the first to rate and review this item

    Your Dell notebook computer ships with an optical drive installed in the module bay. However, the device security screw is not installed in the optical drive but packaged separately. When you install your device in the module bay, you can install the device security screw.

    NOTICE: Insert devices into the module bay before you dock and turn on the computer.

    NOTE: You do not need to install the device security screw unless you want to secure the module inside the computer for security purposes.

    If the Device Security Screw Is Not Installed

    NOTICE: To prevent damage to devices, place them in a safe, dry place when they are not installed in the computer. Avoid pressing down on them or placing heavy objects on top of them.

    1. Press the device latch release so that the latch release pops out.



    2. Pull the device by the latch release to remove the device from the module bay.



    If the Device Security Screw Is Installed

    1. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.

    NOTICE: To prevent damage to devices, place them in a safe, dry place when they are not installed in the computer. Avoid pressing down on them or placing heavy objects on top of them.

    2. Close the display and turn the computer over.

    3. Use a #1 Phillips screwdriver to remove the M2 x 3-mm screw from the bottom of the computer.



    4. Press the device latch release so that the latch release pops out.

    5. Pull the device by the latch release to remove the device from the module bay.

    Installation Notes
  • This drive has no jumpers that need to be set
  • For clearance around the front bezel, it is recommended that a clearance of more than 0.8mm should be left in all directions.
  • This drive does not require any unique device drivers for Windows '98/2000/XP/NT. After installing your drive and re-booting, your system should recognize your drive. Win '98/2000/XP/NT Operating Systems support all ATAPI drives natively.

    Package including:
  • Internal Slim DVD +/-RW & CD-RW combo Drive
  • Software for Writing DVD +/-R, DVD +/-RW, CD-R, CD-RW
  • Software for Palying DVD


    Note: software CD may vary from picture shown


    Tech Note:To install an optical drive into your laptop, you need a special optical drive caddy kit (mounting frame and rear adapter): "Dell Notebook Optical Drive Caddy Kit -D003" This is the caddy kit we are talking about:

    When you place order, you can just order the bare drive without caddy kit,remove the caddy kit from your current optical drive and re-use it on the new drive.

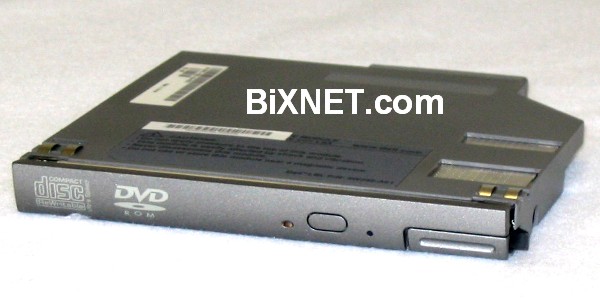

    This is the bare drive without caddy kit:


    You can also order the optical drive with the caddy kit for a little extra charge. This is the drive with caddy kit:
