HP DV5000 Series Laptop Keyboard Installation Guide |
 |
HP DV5000 series laptop keyboard installation guide.
A.Before you begin any removal or installation procedures:
1. Shut down the computer. If you are unsure whether the
computer is off or in hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power cord.
4. Remove the battery pack.
B. Remove Switch Cover:

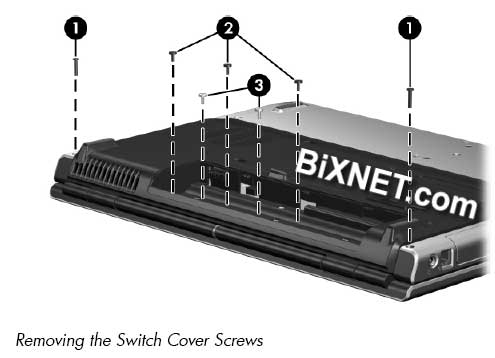

1. Remove the following screws:
1 Two Phillips PM2.5×11.0 screws
2 Three Phillips PM2.5×6.0 screws
3 Two silver Phillips PM2.5×5.0 screws

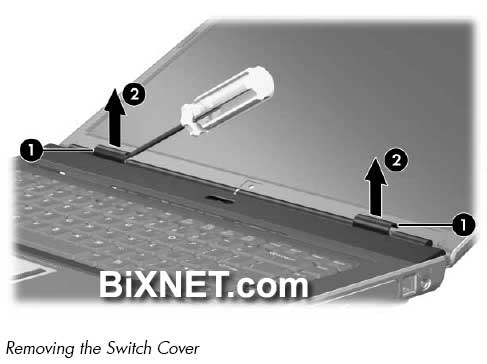

2. Turn the computer display-side up with front toward you.
3. Open the computer as far as possible.
4. Insert a flat-bladed tool under the display hinge cover [1] sections of the switch cover.
5. Lift the switch cover until the left and right sides [2] of the switch cover disengage from the computer.
6. Remove the switch cover.
C. Remove Keyboard Frame:
After remove switch cover:

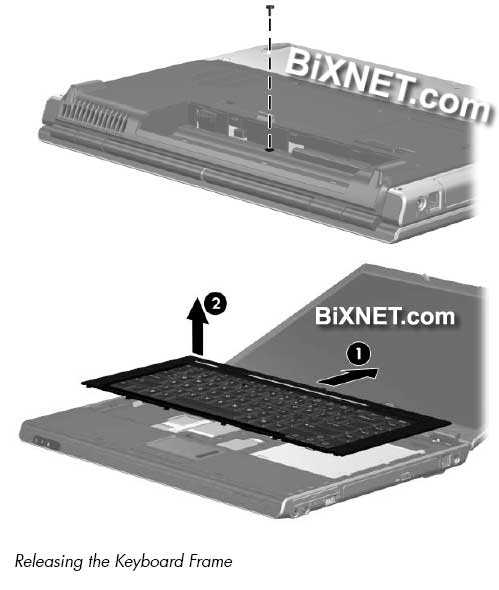

1. Turn the computer upside down with the rear panel
toward you.
2. Remove the Phillips PM2.0×6.0 screw in the battery bay that secures the keyboard frame to the computer.
3. Turn the computer display-side up with front toward you.
4. Open the computer as far as possible.
5. Slide the keyboard frame [1] toward the back of the computer.

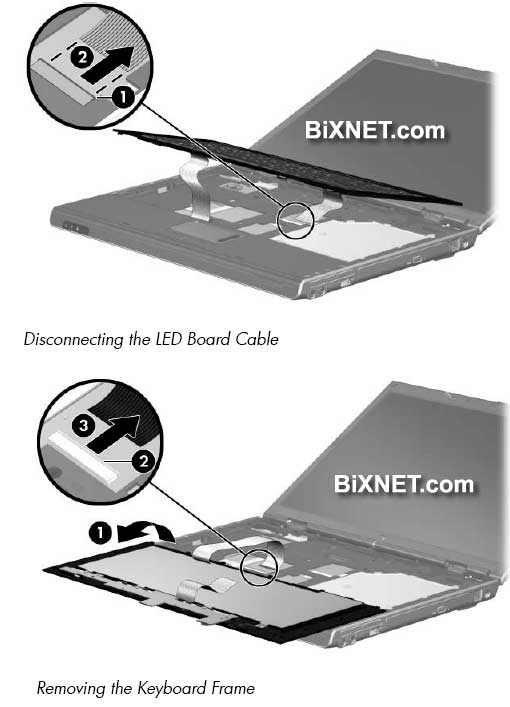

6. Lift and hold the rear edge of the keyboard frame 2 until the LED board cable connector is accessible.
7. Release the zero insertion force (ZIF) connector [1] to which the LED board cable is connected and disconnect the
cable [2].
8. Swing the keyboard frame [1] forward until the assembly rests upside down on the palm rest.
9. Release the ZIF connector to which the keyboard cable [2] is attached and disconnect the keyboard cable [3].
10. Remove the keyboard frame.
D. Remove Keyboard:
After remove switch cover and keyboard frame:

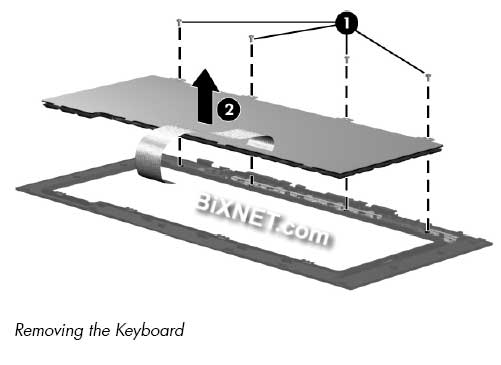

1.Turn the keyboard assembly upside down with the LED
board toward you.
2. Remove the four Phillips PM2.0×3.0 screws [1] that secure the keyboard to the keyboard frame.
3. Remove the tabs on the bottom of the keyboard from the slots in the keyboard frame.
4. Remove the keyboard [2].
Reverse the above procedure to install the keyboard.
 |
|
|
 |
|
|
|
