This mini size high capacity Li-ion battery can be used to charge iPod, iPod MINI, iPod PHOTO, iPod Shuffle, and Sony PSP on the road. Or, simply use it to power these gadgets.



USING POWER STATION

Charging Power Station: ~5 hrs to fully charge

iPod: 7.2 V

iPod MINI: 5 V

iPod PHOTO: 7.2 V

iPod Shuffle: 5 V

Sony PSP: 5 V



POWER

Cell capacity: 2200 mAh

Output voltage: 5, 6, 7.2 V

Output capacity: 14.4 Wh (Watt-Hour), 2850mAh @ 5V, 2400mAh @ 6V, 2200mAh @ 7.2V

Charge Input: 12V/1A

Charge current: Max. 700 mA

Protection: short, over charge/discharge, over current

Charge function: CV 8.4 V

Charging display: RED/charging, GREEN/full

Capacity display: RED/low, YELLOW/mid, GREEN/full

LED high light: two purchase LED

Light time: ~55 hrs



SIZE & WEIGHT

Size: 76 x 58 x 26 Mm

Weight: ~133g

High capacity, Long Run Time. This battery has 14.4 Watt-hour (Wh) capacity. For your reference and comparison, most Digital Cameras/Video Camcorder's standard batteries only have 5Wh capacity. A typical cell phone or iPod battery capacity is only about 3Wh, a iPhone internal battery capacity is around 5Wh. This may help calculating your expected run time when you use this battery for your device.

How does this battery work?

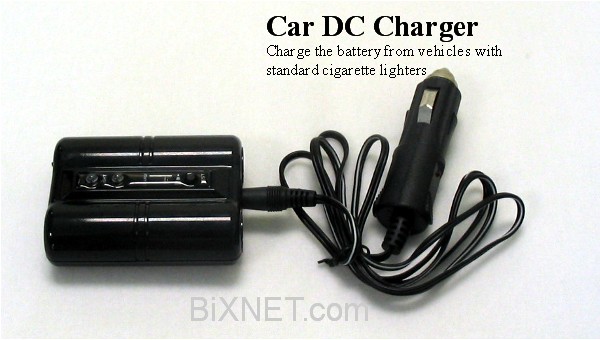

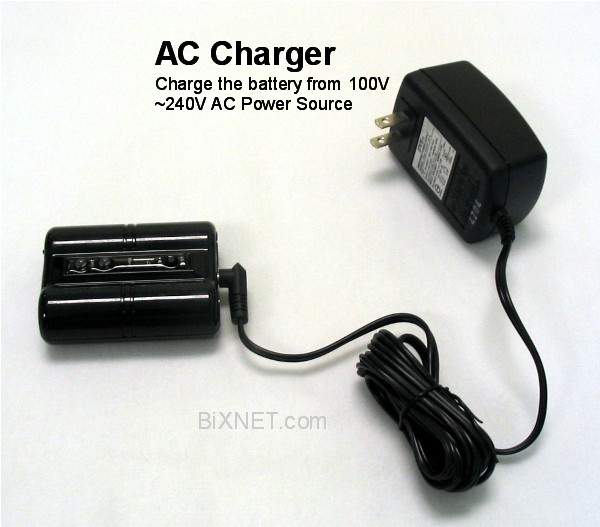

1. This battery has it own AC charger and DC charger, you can charge this battery from 100V~240V AC power source or from 12V DC power source such as a cigarette lighter.

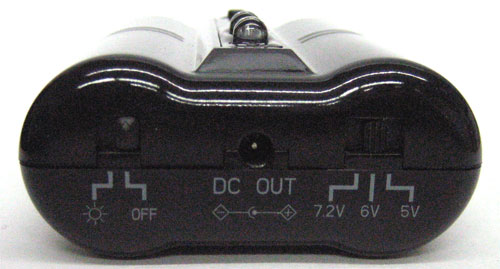

2. This battery has a switch to select different output voltage: 5V, 6V or 7.2V

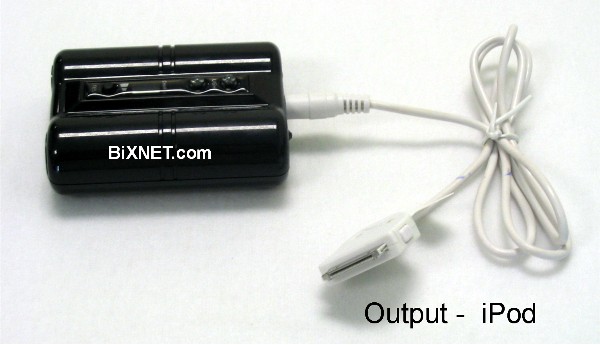

3. This battery comes with different output cables and connectors to connect to the DC output for different devices and applications.

Make Sure the Polarity is Correct.

Polarity

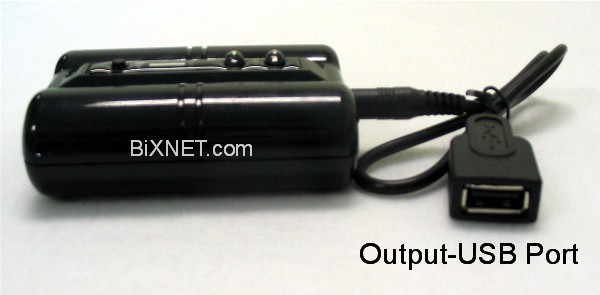

If your device has its own USB port power cord, you don't need to worry about Polarity since your original power cord must be set at right polarity. If you want to our universal cable and connectors, please make sure to set right polarity.

It is CRITICAL that you determine and set the correct polarity needed for your device before using the battery. FAILURE TO DO SO MAY RESULT IN SEVERE DAMAGE TO YOUR PRODUCT!

To determine the correct polarity for your device, inspect the DC adapter jack or the label of your product thoroughly for information about the products polarity. There will be a symbol with a plus sign on one side and a minus sign on the other with a circle between them. The circle will have an opening so that it looks like a "C". If the opening of the circle is on the side with the plus sign the polarity is positive. If the opening is on the side with minus sign the polarity is negative. If you cannot find a polarity sign on your product you need to call the product's manufacturer to find out what the polarity is.

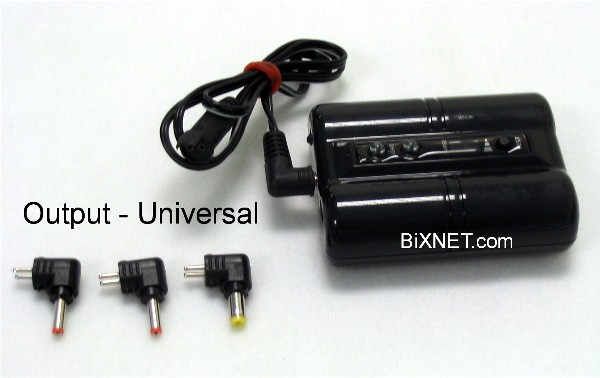

There is a small plus (+) and minus (-)sign on the plastic part of the plug tip above the two pins where you plug the tip into the cord. On the adapter's cord where you connect the plug tip - you should notice the word "tip".

If your polarity setting is POSITIVE, you need to set the plug tip to "tip positive" by connecting the "plus sign" and the word "tip" on the adapter cord so they line up on the same side. Most laptops polarity setting is Positive like bellow picture:

If your polarity setting is NEGATIVE, you need tip to set the plug tip to "tip-negative" by connecting the "minus sign" and the word "tip" on the adapter cord so they line up on the same side.

After select right tip and decide the polarity, you can just plug the tip into the adapter cord.



Our optional USB DC Power Cable -Z4 and Consumer Electronics Plug Tips. will make this battery works for a lot of devices that need 5V DC power.
