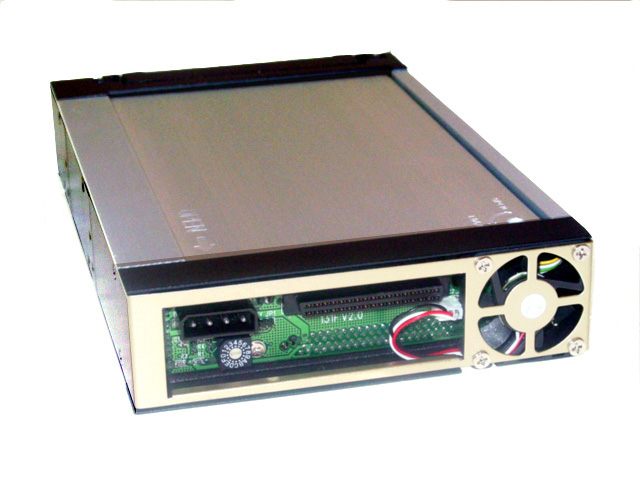

This SCSI Hard Drive Removable Kit (also called Mobile Rack) is an aluminum drive caddy and receiving bay for internally mounting an 3.5" 68 pin SCSI drives into half-height, 5.25" peripheral bays. This allows SCSI hard drives to be quickly added or removed from any PC with an available 5.25 inch drive bay without opening the computer. The 2-piece unit consists of a bay that mounts into the PC, and a removable drawer or caddy that encases the hard disk. A locking mechanism controls power to the drive to prevent it from being removed while operating. A handle activated drawer release mechanism allows the drive to be inserted or removed with minimal force. Dual cooling fans provide fresh cool air-flow over the hard drive, preventing overheating and data loss. The Removable Hard Disk Drawer is perfect for educational use, where the same PC needs to run several different operating systems, high speed, high capacity backups, hot-swap server drives, or any mission critical PC where downtime must be minimized.
Applications/Solutions:
Server drive arrays
High-end workstation drives
Mission critical control PCs where downtime must be minimized
Benefits:
PC case does not need to be opened for drive removal
Drives can be hot-swappable if used with appropriate RAID controller card
Features:
Aluminum Frame , Aluminum cover
Ultra 160/320, SCSI 68/68pin
Front fan x1 + Rear fan x1
Temperature Sensor & Buzzer Alarm
Power Control Keylock
Magic Handle -- Auto In&Out
4 LED for P&S, Temperature, HDD,Fan sensor
SCSI ID Display 0-F
HDD Overheating Detection
Easy to operate, high security, portable Hard Disk Drive system for 3.5" HDDs
Provides removable high capacity data storage
Includes 68-pin connector to SCSI Ultra2 Wide drive, HDD activity cable, Spindle Sync cable, and SCSI ID selector cable
Requires a PC with available 5.25" drive bay, drive connection cable, internal power cable
SCSI ID of the installed drive is shown on the front panel display
Specifications:
Support Ultra 320&160 transfer rate
SCSI 68 pin cableless connection
