Notebook ExpressCard Docking Station with Digital Video and Audio

Notebook ExpressCard Docking Station with Digital Video and Audio has a number of features to maximize the capabilities of your workstation. The new ExpressCard technology provides a high- speed interface and has the capability to transfer data up to 5 gigabits a second (Five times faster than typical USB 2.0 docking stations). It also includes digital video and audio connections. Two high-speed, "Always On" USB power ports remain powered when the notebook is OFF or disconnected making this function ideal for recharging mice, phones and other devices. Featuring three video modes, this docking station enables the user to set their external monitor as their primary display, simultaneously use both the notebook screen and external monitor for combined viewing or replicate the notebook screen onto their external monitor. Connecting monitors to the docking station is easy, simply plug the monitor directly into the device; no other cables are needed. The ExpressCard docking station provides advantages over proprietary OEM ones by offering universal compatibility with a variety of notebooks with an ExpressCard slot.



Security -Two lock slots allows you to secure docking station to your desk

Digital Technology – Supports digital audio, video and multiple modes display

Always on USB Ports – USB power ports remain powered even when the notebook is OFF or disconnected; ideal for recharging mice, phones and other devices

Direct video support – Directly connect monitor or LCD to the docking station; no additional connection cable required

Video resolution – Supports up to 1600 x 1200 32-bit color (UXGA)

Video Modes – Features several video modes for added functionality; Primary Video Mode: Use external monitor as primary display; Extended video mode: Simultaneously use both notebook screen and external monitor for combined viewing; Mirror Video Mode: Replicate notebook screen onto external monitor

One-touch notebook connection – Simply plug in an ExpressCard TM slot to connect all your external devices to your notebook.

Color

Black

Exterior Dimensions

11.96" x 3.66" x 1.04"

Includes:

Targus Expresscard Universal Docking Station with Video

34/54 mm Spacer adapter

Expresscard Cable and Card

AC Adapter

Installation CD

User guide

System Requirements

ExpressCard TM slot (34mm or 54mm)

Windows XP (SP2) or Vista

Technical

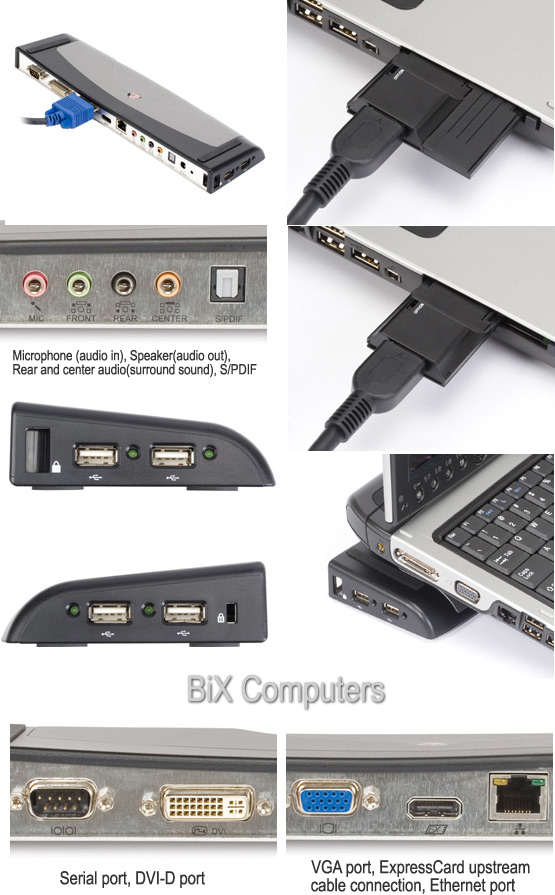

Connector Types: - (4) High speed USB 2.0 (Type A) downstream ports - (1) Serial (RS232) - (1) Ethernet (10 base-T/100Base-T/1000Base-T) - (1) ExpressCard Cable and Card Assembly - (1) 15 pin D-Sub VGA connector - (1) 24 pin DVI Connector (DVI-D) – (1) Front (Left and right channels) - (1) Rear (left and right channels) - (1) Center (subwoofer) - (1) Microphone In - (1) S/PDIF (Toslink Optical connector)

Two Security connections : (1) Securelock slot, (1) Targus Cable Lock

Warranty

Limited One Year Warranty

Weight

14.01 oz
