Pocket-Size Network Router & Wireless Access Point with Travel Case.
Features:This High-Speed (2.4GHz 802.11g) Pocket-Size Network Router & Wireless Access Point is a portable and convenient wireless solution for
the traveling business person delivering 802.11g wireless
connectivity with a maximum wireless signal rate of up to 54Mbps.
Use it in conference rooms, hotel rooms, or even at hot spots.
The Wireless Pocket-size Router/AP might be small in size, but is huge in
functionality. It supports multiple operation modes
including:
Access Point (AP) mode to create a wireless connection;
Router mode to share an Internet connection; and
Wireless Client
mode to connect an existing wireless network. Easily switch between

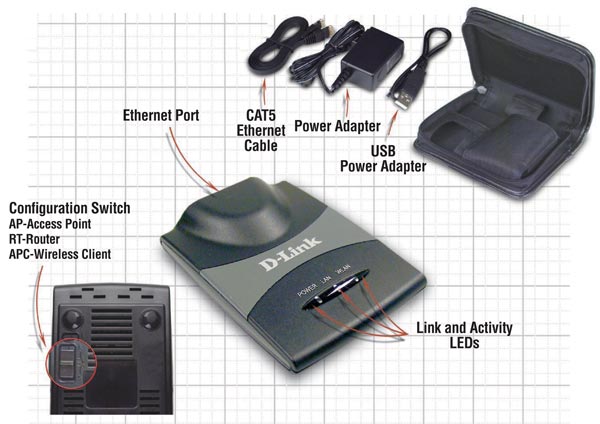

these modes by using the 3-way configuration switch located at the
bottom.
In
AP mode, it can be used to create a wireless network
in a room where a single Ethernet port is provided. Now multiple
wireless clients can connect to the network at the same time to
share resources and files.

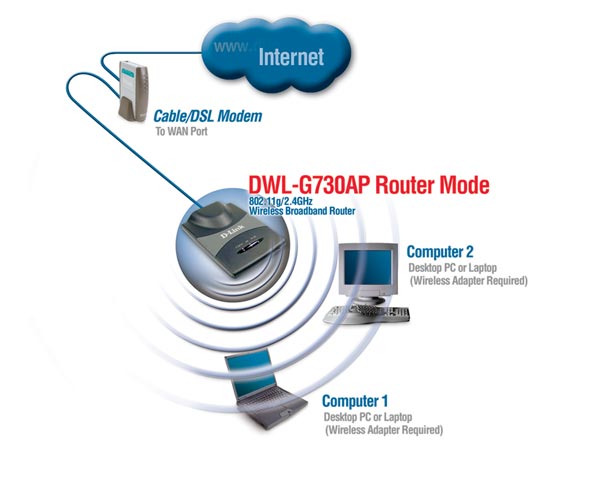

In
Router mode, it can be used to share a single
broadband Internet connection, such as in a hotel room. The
internal DHCP server automatically assigns IP addresses to ensure
everyone in the room can connect to the Internet. In addition, it
supports VPN Pass-through and firewall features,
including Network Address Translation (NAT) and MAC filtering to
protect your wireless network from malicious attacks.
When set in
Wireless Client mode, the unit allows connection
to an existing wireless network, without having to install
complicated drivers or additional software.
For added mobility, the
unit can be powered over USB port if power outlets are not available.
The Pocket-size Router/AP supports WPA-PSK to secure your wireless data
communications. In AP mode, it adds support for 802.1x user authentication
with an external RADIUS server. For setup and configuration the unit can
be accessed via user-friendly Web-based utility.
Easy to pack and convenient for traveling, the unit comes with
an attractive traveling case which also provides accessories
including cables and a power adapter. Increase productivity and
enjoy the benefits of wireless connectivity while on the road with
Pocket Router/AP.
Pocket Router/AP.
| Specifications |
| Standards | | • | IEEE 802.11b | | • | IEEE 802.11g | | • | IEEE 802.3 | | • | IEEE 802.3u |
|
| Device Management | | • | Web-Based – Internet Explorer v6 or Netscape Navigator v7 . |
|
| Wireless Signal Rates* With Automatic Fallback | For 802.11g:| • | 54, 48, 36, 24, 18, 12, 9 and 6Mbps |
For 802.11b: |
| Security | | • | 64/128-bit WEP | | • | WPA –PSK | | • | 802.1x** | | • | MAC Address Filtering | | • | SSID Broadcast Disable |
|
| Wireless Frequency Range | |
| Wireless Signal Range* | 802.11g (Full Power with internal antenna)
Outdoors:| • | 164ft (50m) @ 54Mbps | | • | 492ft (150m) @ 11Mbps | | • | 656ft (200m) @ 6Mbps |
|
| Power | | • | External Power Supply: DC 5V/1.2A |
|
| Radio and Modulation Type* | For 802.11g:
OFDM:| • | BPSK @ 6 and 9Mbps | | • | QPSK @ 12 and 18Mbps | | • | 16QAM @ 24 and 36Mbps | | • | 64QAM @ 48 and 54Mbps |
DSSS:| • | DBPSK @ 1Mbps | | • | DQPSK @ 2Mbps | | • | CCK @ 5.5 and 11Mbps |
For 802.11b:
DSSS :| • | DBPSK @ 1Mbps | | • | DQPSK @ 2Mbps | | • | CCK @ 5.5 and 11Mbps |
|
| Wireless Transmit Power* | Typical RF Output Power at each Data Rate
For 802.11g:| • | 31mW (15dBm) @ 54Mbps | | • | 40mW (16dBm) @ 48Mbps | | • | 40mW (16dBm) @ 36, 24, 18, 12, 9, and 6Mbps |
For 802.11b:| • | 50mW (17dBm) @ 11, 5.5, 2, and 1Mbps |
|
| Receiver Sensitivity* | For 802.11g:| • | 6Mbps: -87dBm | | • | 9Mbps: -85dBm | | • | 12Mbps: -82dBm | | • | 18Mbps: -81dBm | | • | 24Mbps: -80dBm | | • | 36Mbps: -79dBm | | • | 48Mbps: -71dBm | | • | 54Mbps: -69dBm |
For 802.11b:| • | 1Mbps: -90dBm | | • | 2Mbps: -90dBm | | • | 5.5Mbps: -86dBm | | • | 11Mbps: -85dBm |
|
| LEDs | |
| Temperature | | • | Operating: 32ºF to 131ºF (0ºC to 55ºC) | | • | Storing: -4ºF to 149ºF (-20ºC to 65ºC) |
|
| Humidity | | • | Operating: 10%~90% (non-condensing) | | • | Storing: 5%~95% (non-condensing) |
|
| Certifications | |
| Dimensions | | • | L = 3.15 inches (80mm) | | • | W = 2.36 inches (60mm) | | • | H = 0.67 inches (17mm) |
|
| Weight | |
| Warranty | |
*
Maximum wireless signal rate derived from IEEE Standard 802.11g
specifications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network traffic,
building materials and construction, and network overhead, lower actual
data throughput rate. Environmental conditions will adversely affect
wireless signal range.
** 802.1x supported in Access Point mode only.
* Specifications subject to change without notice.
