24V 14Ah Electric Bike Lithium Ion Battery -BX2499B



 24V 14Ah Electric Bike Lithium Ion Battery -BX2499B
Item #: BAT-BX2499B
In Stock - Ready to Ship
Condition: New
Warranty: 1 Year
Please select Output Box Type

Regular price:

$499.00

Sale price:

$349.95

Qty:
This battery is for professional users with advanced electric acknowledge & experience only. We are not responsible for any damages or losses caused by using the battery pack. Please read Battery Safety Information & Guidelines and our Terms & Policies before order this battery.



DescriptionTech SpecsReviewsSpecial Notes
24V 14Ah Light Weight Lithium Ion Battery for electric bicycles and other devices that require 24V high power up to 300W. Made with high quality Panasonic Lithium Ion cells.

Note: this battery maximum output is 300W. It is recommend to use with devices need 250W or less power. If your bicycles or scooters require more than 300W power, you may not use this battery.

This battery is for professional users with advanced electric acknowledge only. We are not responsible for any damages or losses caused by using the battery pack . Please read Battery Safety Information & Guidelines and our Terms & Policies before order this battery.

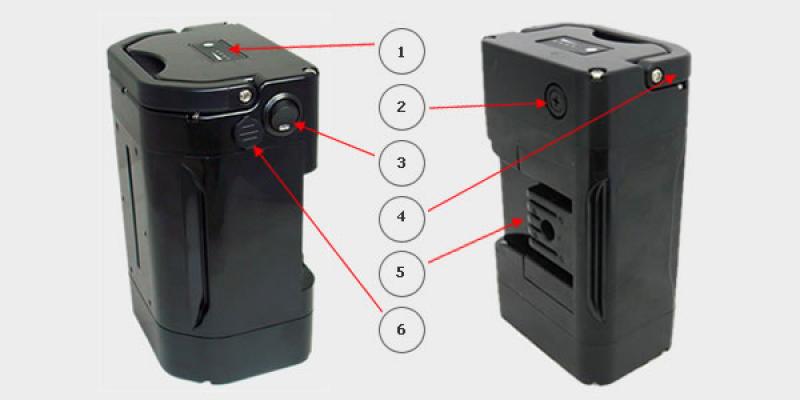

1 4-Level LED indicator
2 15A Fuse
3 Power on/off
4 Handlebar
5 Battery contact socket
6 Charging input jack
Output Voltage: 20V ~ 29.75V, Nominal Voltage: 25.2 V;
Maximum Continuous Output Current: 13A (Output Power: 250W ~ 300W);
Maximum Burst Output Power ( up to 10 minutes) Current: 15A (Output Power: 300W~350W)
.

Features:


Safety Equipment
  • - Water-resistant and firm ABS plastic casing.
  • - Built-in PCB protection.
  • - Prevent short circuit, over-current, over-heat, over-charge, over-discharge.
  • - The internal pack is stabilized by braces.
  • - Avoiding mechanical accidents caused by vibration.
Specifications:
Model No.
  • BX24H99B


Chemistry
  • Lithium-ion
Voltage
  • Nominal Voltage: 25.2 V
  • Minimum Voltage: 20.5V
  • Maximum Voltage: 29.75V
Capacity
  • 14Ah @ 24V
Rate
  • 336 Watt-hour
Configuration
  • 7S4P
Inner Resistance
  • ≤75 mΩ
Charge Voltage Limit
  • 29.75 V
Max. Charge Current
  • 2 A
Continuous Discharge Current
  • 15 A
Burst Discharge Current
(up to 10 minutes)
  • 18 A
Size
  • 175.00 x 110.00 x 75.00 mm
  • ( or 6.8" x 4.3" X 3")
Weight
  • 1.72 kg ( or 3.8 pound)
Operate Temp. Charge
  • 0~45 ℃
Operate Temp. Discharge
  • -20~60 ℃
Storage Temp.
  • -20~40 ℃
Cycle Life
  • 500 Times
PCB Safety Function
  • Cell balancing
  • Over-discharge
  • Over-current protection
  • Over-charge
  • Temperature protection
  • Secondary protection

Small Size and Light Weight:

This battery weight is only around 3.8 pounds (same capacity Lead-Acid battery will be around 16 pound).



Using Lithium-ion battery offers many advantages over older SLA (Sealed Lead Acid) battery because of Lithium-ion battery's high energy density, small size, and low weight. A typical Lithium-ion battery may only has 1/4 of weight and 1/2 of size compare to same capacity traditional heavy bulky Sealed Lead Acid battery.

Package Contents:

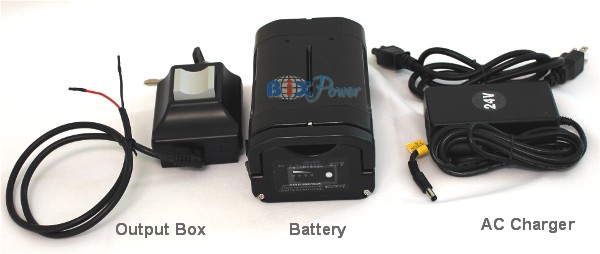

The battery comes with a AC charger and output box. The AC charger can charge the battery from 100V ~ 240V AC power source.

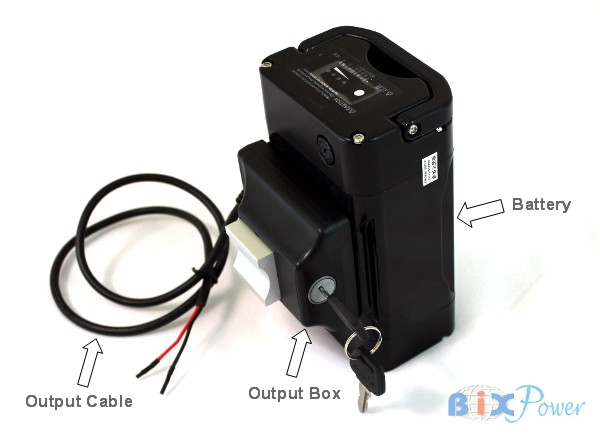

Output Box:

The output box can slide to battery contact socket, provide output cable with 2 wires: red wire is +24V, black wire is ground.

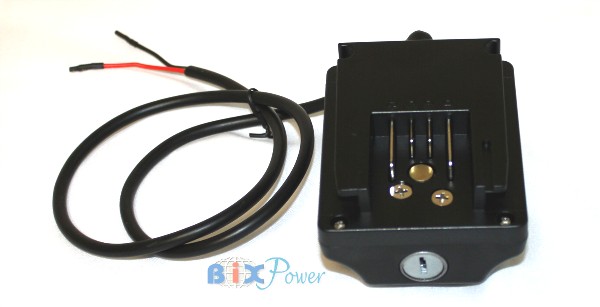

KF542B Output box:

If you are using this battery for a e-bike, you may select this output box. This output box comes with a lock for mounting on a bike or other devices.


Output Box (Model # KF542B)
Size: 95.00 x 89.00 x 59.00 mm (3.7" x 3.5" x 2.3")

The output box is lockable: if locked, it can not be removed from the battery. If unlocked, it can slide on/off the battery contact socket easily.



LED Display:


Safety Features:
  • Water-resistant and firm ABS plastic casing.
  • - Built-in PCB protection.
  • - Prevent short circuit, over-current, over-heat, over-charge, over-discharge.
  • - The internal pack is stabilized by braces.
  • - Avoiding mechanical accidents caused by vibration.

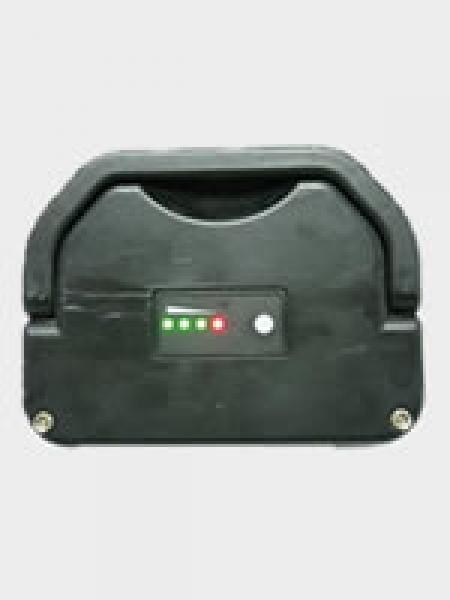

The Four-level LED indicates current power status.

The Four-level LED indicates current power status.

The 15A fuse, serves as a second protection device, can prevent the battery pack from excessive discharge.

The 15A fuse, serves as a second protection device, can prevent the battery pack from excessive discharge.

It is easy to hold the battery with the well designed handlebar.

It is easy to hold the battery with the well designed handlebar.

Battery can be recharged either by fastening on the bike or by itself with the provided AC adapter.

Battery can be recharged either by fastening on the bike or by itself with the provided AC adapter.

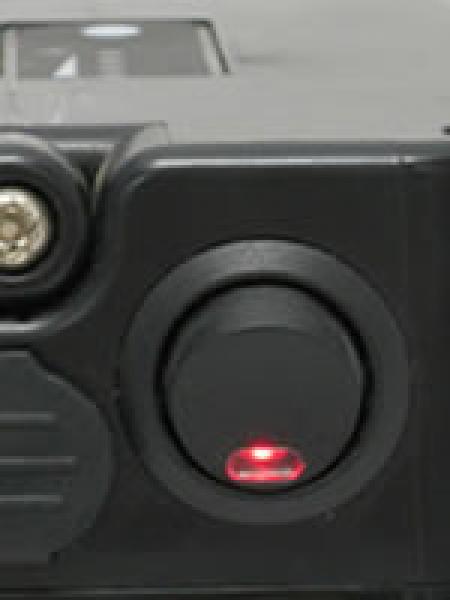

The power on/off button is set on the battery base.

The LED (at the power button controls on/off of the battery) glows when power is on.

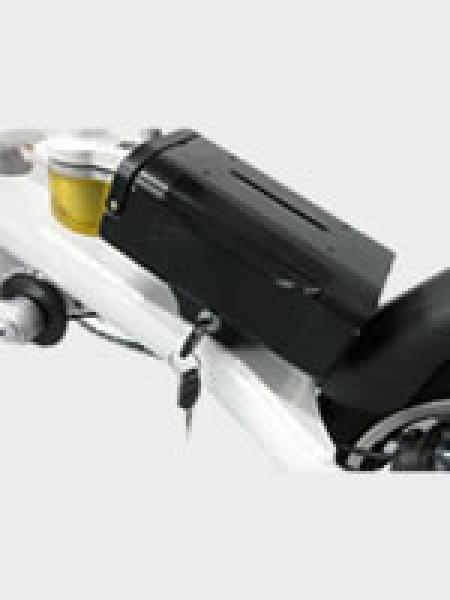

Key Lock

The key lock is used to fix the battery onto the holder.

Battery Output Box can be welded on the bike vertically or horizontally.

Key Lock

The optional Output Box KF542 is designed for multi-direction installation. User can change the position of battery (vertically / horizontally) by adjusting the clamp.

Battery can be installed easily. Simply slide the battery towards the holder by following the track

.





If you do not need to mount the battery to anywhere, you may also buy the optional flat cover to use with the output connection box. It will look like this:


Battery with Optional Flat Cover Output Box


Accessories:
1. AC Charger
  • Size: 115.15 x 58.90 x 31.30 mm
  • Input Voltage: 100-240 V
  • Output Voltage: 29.7 V
  • Output Current: 1.5 A
  • Safety Requirements: CCC, CE
2. Power Cord



American Type Adapter Power Cord, Length: 1000 mm










3. Output Box (Model# KF542)
Model No.:KF542B.150
  • Size: 95.00 x 89.00 x 102.00 mm
  • Wire Length: 1500 mm











Overall Rating for 24V 14Ah Electric Bike Lithium Ion Battery -BX2499B
(no reviews)Be the first to rate and review this item


Specifications:

Model No.
  • BX24H99B.086
Cell Brand
  • Samsung
Chemistry
  • Lithium-ion
Voltage
  • Nominal Voltage: 25.2 V
  • Minimum Voltage: 20.5V
  • Maximum Voltage: 29.75V
Capacity
  • 10.4Ah @ 25.2V, 11Ah @ 24V
Rate
  • 262 Wh
Configuration
  • 7S4P
Inner Resistance
  • ≤75 mΩ
Charge Voltage Limit
  • 29.75 V
Max. Charge Current
  • 2 A
Continuous Discharge Current
  • 15 A
Burst Discharge Current
  • 30 A
Size
  • 175.00 x 110.00 x 75.00 mm  or (6.8" x  4.3" X 3")
Weight
  • 1.72 kg ( or 3.8 pound)
Operate Temp. Charge
  • 0~45 ℃
Operate Temp. Discharge
  • -20~60 ℃
Storage Temp.
  • -20~40 ℃
Cycle Life
  • 500 Times
PCB Safety Function
  • Cell balancing
  • Over-discharge
  • Over-current protection
  • Over-charge
  • Temperature protection
  • Secondary protection
This battery is for professional users with advanced electrical acknowledge only. Please read Battery Safety Information & Guidelines and our Terms & Policies before order this battery.
