Super High-Capacity External Battery Special Version, with special connectors for Dell & Other laptops.

Replaced by BP160 Battery.

This Universal External Lithium Rechargeable Battery Pack is the Solution for You !

It has up to 3~4 times battery run time (171 Watt-Hour, compared to 40 Watt-Hour of most notebook computer batteries.)

Its universal platform works for most of the notebook computers require 18V~20V DC input voltage (This voltage is the notebook AC power adapter output voltage, not the internal battery output voltage).

Its super slim size can easily fit into a laptop/notebook carry bag.

Please read safety info before purchase!

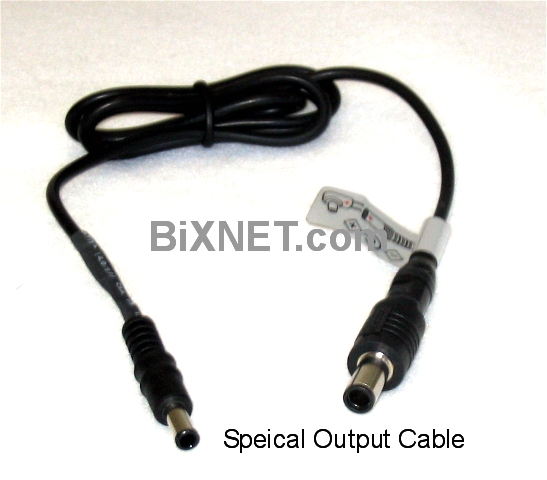

This battery comes with some special output cable & connectors some Dell laptops. It works for:

Dell Inspiron 2500, 2600, 2650, 3700, 3800, 4000, 4100, 5000, 7500, 8000, 8100

Dell Inspiron 13, 14, 14z, 15, 15z, 17

Dell Inspiron 1150, 1318, 1320, 1410, 1420,1425,1427, 1440, 1470, 1501, 1520, 1521, 1525, 1526, 1545, 1570, 1720, 1721, 1750,

Dell Inspiron 6000, 6400, 8500, 8600, 9200, 9300, 9400,

Dell Inspiron 110L,300m, 500m, 505m, 600m, 630m, 640m, 700m, 710m,

Dell Inspiron B120, B130, E1405, E1505,E1705

Dell Latitude C400 , C500 , C510 , C600 , C610 , C800 , C810 , CP , CP series , Dell Latitude Series D400, D410, D420, D430, D500, D505, D510, D520, D530, D531, D600, D610, D620, D630, D631, D800, D810, D820, D830 Series

Dell Latitude 131L, E4200, E4300, 2100, E5400, E5500, E6500, E6400

Dell Latitude X200, X300, XT2

DELL STUDIO 13, 14z, 15, 1555, 1435, 1440, 1450, 1457, 1535, 1536, 1537, 1555, 1557, 17, 1735, 1737, 1745, 1747

DELL STUDIO XPS 13, 1340, 16, 17

DELL VOSTRO 90, 1000, 1014, 1015, 1088, 1200, 1210, 1220, 1300, 1310, 1320, 1400, 1500, 1510, 1520, 1700, 1710, 1720, 2510, A840, A860, V13,

Dell XPS Series M1210, M1330, M140, M1530

Dell Precision Series: M20, M2300, M60, M65, M70, M2400, M4300

Dell D-Series Docking Series: Station or D/Port Replicator

DELL Projector: M109s Projector

This Universal External Battery is designed to give the mobile computer user extra runtime. You no longer have to worry about limited battery capacity for your mobile devices. This external battery combines a high capacity 171 Watt Hours rechargeable Lithium-Polymer battery and a modular design. With 12 modular connectors available, besides above Dell laptops, it can also power most of other brand laptop computers on market.

Tech Note:

The external battery works like a AC power adapter to a laptop. Some Dell laptop BIOS has a special setting: if it detects a non Dell AC power adapter, it will give warning message or refuse to work even the battery will work perfectly with it. You can ignore the message or just disable the warning setting in the BIOS and the battery will work perfectly.

This battery have over current protection. The maximum current output is 6A. When your devices try to draw more than 6A current, the battery will shut off for safety. After shut off, you need to use the AC charger to re-start the battery. This battery is recommended for using with devices that need less than 5A current input.

CAUTION: Always turn off the battery when you do not use the battery. There is an on/off switch on the back of the battery, please switch to “off?when you don’t use the battery. Leave the battery switch “on?may build up static inside the battery cells and damage the battery.

Features/Specifications:

(1) Powerful, 171 Watt-hours extensive power supply with long operating time.

(2) 3 Outputs: 19V, 12V, 5V. Wide compatibility, widely applied to laptop computers, Portable DVD, PDA and other devices.

(3) 12 different tips included that work with over 10,000 notebook models including IBM, DELL, Sony, Apple, Compaq, Acer, Canon, Toshiba and etc.

(4) Chemistry: Advanced Lithium-Polymer Based

(5) Super High Capacity :9000 mAH @ 19V (171 Watt-hours)

(6) Super thin design: 11.5" x 8.5" X 0.75"

(7) Portable and convenient. Weight: 3.1 lb.

(8) Excellent security and reliability

(9) High efficiency power conversion

(10) Power saving function

(11) Memory effect free

(12) Environmentally friendly and economically efficient



How this battery works:

1. This battery has it own battery charger, you can charge it from any 110V or 220V AC power source with the included AC charger.

2. Select the right connector tip: Included with the battery pack are 12-plug tips that work with most notebooks & other devices. With the plug tip not connected to the output cord, locate the correct tip by fitting the tip into the notebook DC Jack. The tip should fit snugly in the DC jack



After you have selected the proper plug tip, connect the plug tip to the battery cord.



Note:Beside regular connectors, this battery also comes with a special connector for Dell laptops.



3. This battery has 3 output ports: 19V, 12V, 5V. After connect the connector tip to the battery output cord, select the output port, connect the output cord to the correct output port. The 19V output port is compatible with devices require 18V~20V DC.

4. Connect the External Battery Pack to your notebook DC power input jack (which is the same jack your notebook AC power adapter usually plugs into). Now you can power your notebook from this External Battery Pack .

Note: If your notebook internal battery is a working battery and has been fully charged, you can leave it in your notebook. Otherwise, we recommend you removing the internal battery from your notebook to maximize the external battery running time. The external battery will still work fine if you leave non-charged internal battery in the notebook, but it may not reach the maximum running time since it needs to charge the internal battery at same time when it is powering the computer.

How long can this external battery run ?

This battery's capacity is 171Wh(Watt-hour): you can compare this battery's capacity with your internal battery capacity to figure out how long this battery can run your notebook. For example, if your notebook internal battery output is: 10.8V & 4000 mAh, then, your notebook internal battery capacity is:

10.8V x 4000 mAh = 43200 mVAh= 43.2 Wh (Watt-hour).

This external battery capacity is about 171/43.2=3.9 times of your internal battery capacity.

If your internal notebook battery can run 3 hours, then the external battery pack can theoretically run about : 3 hours x 3.9 = 11.7 hours.

This is a rough estimate. Actual running time varies, depending on notebook computer's configurations and what kind of applications running . For example, screen brightness, the use of the CPU, the hard drive, the CD drive, and other peripherals results in an additional drain upon the battery, effectively reducing the battery's run-time. The total run-time of the battery is also heavily dependent upon the design of the notebook. To ensure maximum performance of the battery, optimize the computer's power management features. Refer to the computer manual for further instructions.



Standard Accessories:

1.) AC charger

2.) 12 connectors

3.) Output Cord

4.) User Manual

Polarity
The default battery output cable and connectors are configured as positive polarity, which meet the needs of most of devices.

Compatibility

This battery comes with special connectors for Dell laptops.

Beside Dell laptops, this battery also works for a lot of other brand laptops. It also comes with 12 different connectors for other brand laptops. Even you can not find your laptop or other device listed in our web site, the battery may still work for you. If your device needs 12V or 18V ~ 20V DC power ( it is same as your device AC power adapter DC output voltage), the DC plug is round shape and looks similar to one of connector tips shows on the following picture, then this battery should work for your device.

Warranty: We carry 6 months warranty for this battery against manufacturing and quality defects! The life of a rechargeable Li-Ion battery operating under normal conditions is generally around 500 charge-discharge cycles.

We ship this battery through UPS only. Not available to APO/FPO addresses.
