This small size, high capacity Mini external battery is for Sony PSP, iPod Mini & iPod Shuffle (optional cable needed) , MP3, MP4, PDA, Mobile phone, network routers, digital cameras, Camcorders, portable DVD/VCD player or devices which require 5V external DC power supply.
Specifications:
Battery Capacity: 26.6Wh (most camcorder's standard batteries only have 5Wh~10Wh capacity. For example, Sony NP-FM50 battery is 8.5Wh, running 2~3 hours, this battery has 2.5 more times capacity, so it can run same camcorder up to 5~7 hours)
Battery Output Voltage: 5V
DC Output: 1500mA Max *
Size: 5.2"x 3.1"x 0.6"
Weight: 275g
* This battery is recommned to use with devices that can be powered or charged from a computer USB port. If your devices need output current large than 1 A (1000 mA), we recommend to use our PM85-25 or PM85-50 battery.
Key Features:
High capacity, Long Run Time. This battery has 26.6 Watt-hour (Wh) capacity. For your reference and comparison, most Digital Cameras/Video Camcorder's standard batteries only have 5Wh capacity. A typical cell phone or iPod battery capacity is only about 3Wh, a iPhone internal battery capacity is around 5Wh. This may help calculating your expected run time when you use this battery for your device.
Ultra light weight & small size design.

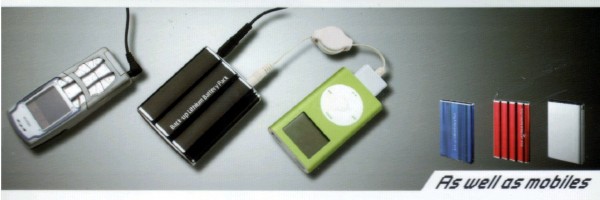

Compare the battery size with a cell phone.
Compatible with devices which require 5V power supply, such as Sony PSP, iPod Mini, iPod Shuffle, MP3, MP4, PDA, Mobile phone, network routers, digital cameras, Camcorders and other devices which require 5 volt power supply.
No memory effect. Can be recharged at any time regardless of the amount of discharge.
AC quick charger included. Temperature and over-voltage/current protection.
6 different Universal round shape connectors included. Compatible with most all digital cameras/video cameras or equipment.
Can also be used as an external power supply for any device such as portable Radio, CD/VCD/ DVD player etc...which requires 5 volt power input.
How this battery works:
1. Charge the battery: This battery has its own battery charger. You can charge it from any 110V or 220V AC power source with the included AC charger through the "DC IN" port on the battery.
New Feature: You can also charge this battery from a USB port power through the Mini "USB IN" port on the battery. This new feature is only available for batteries purchased after March 2009. Previous batteries may not have this feature.

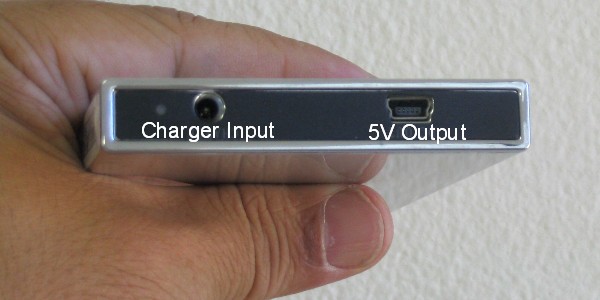

DC IN Port: Use this port to charge battery with the enclosed AC Charger.
USB IN Port: Use this port to charge battery from a USB port power
Ch.Lo. LED: Will light when battery is charging or when the power is low.
5V DC OUT Port: Supplies the 5V power
If you have a USB power cable for your device, you can directly charge your device by connect your device to the "5V DC OUT" USB port through your own USB power cable.
Our optional USB DC Power Cable -Z4 and Consumer Electronics Plug Tips. will make this battery works for a lot of devices that need 5V DC power. 2. Select the right connector tip: Included with the battery pack is a USB output cord with a few connector tips. With the connector tip not connected to the adapter cord, locate the correct tip by fitting it into the device DC Jack. The tip should fit snugly in the DC jack
3. Make Sure the Polarity is Correct: After you select the proper plug tip and make sure the polarity is right. If your device has its own USB port power cord, you don't need to worry about Polarity since your original power cord must be set at right polarity. If you want to use enclosed output cord and connectors, please note that The default battery output cable and connectors are configured as positive polarity. Please make sure your device�s polarity is positive. If not, you cannot use enclosed output cable and connectors.
Positive polarity means inside the connector is positive and outside the connector is ground.
It is CRITICAL that you determine the correct polarity needed for your device before using the battery. FAILURE TO DO SO MAY RESULT IN SEVERE DAMAGE TO YOUR PRODUCT!
To determine the correct polarity for your device, inspect the DC adapter jack or the label of your product thoroughly for information about the product�s polarity. There will be a symbol with a plus sign on one side and a minus sign on the other with a circle between them. The circle will have an opening so that it looks like a "C". If the opening of the circle is facing the plus sign, the polarity is positive. If the opening is facing the minus sign, the polarity is negative. If you cannot find a polarity sign on your product you need to call the manufacturer to find out the polarity.
4. Power your device: This battery has a 5V DC OUT port with a USB Type A female connector. With the enclosed USB output cable and different connector tips or your own USB power cable, connect the 5V DC OUT port to your device�s power input jack (which is the same jack AC power adapters usually plug into). Now you can power your digital cameras/video camcorders (or other devices) from this battery.
The Lithium-Ion rechargeable mini battery pack has ultra long run time for most digital cameras/video camcorders on the market, as well as many new models to be released.

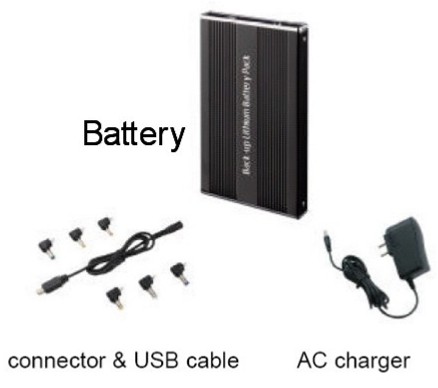

Also included with each pack are the AC Quick Charger, USB cable and connectors.
AC Quick Charger:Simply plug it in any compatible AC outlets to charge the battery. It is compatible with both 110V and 220V power source. AC Input can be: 100V-240V
USB cable & Plugs :Using a modular design,there is only one cable. With a variety of modular connectors available. The mini battery pack can be made instantly compatible with a wide array of digital cameras/ video camcorders/ portable DVD/VCD players or other devices.
Our optional Consumer Electronics Plug Tips will make this battery works for a lot of devices that need 5V DC power.
How to use the optional Plug Tips with this battery:
1. One of the connectors come with the battery pack will fit our optional plug tips. First, use this connector as a bridge, install this connector to the output cord like this:
2. Then install the optional Plug Tips you selected on the bridge connector like this:
3. Now you are ready to use the battery:
DS Game Player Not Included.
Overall Rating for 5V Pocket-Size Lithium Battery Pack
 | (no reviews) |  |
Our optional Consumer Electronics Plug Tips. will make this battery works for a lot of devices that need 5V DC power.
Click on above picture to see the optional available plug tips.
How to use the optional Plug Tips with this battery:
1. One of the connectors come with the battery pack will fit our optional plug tips. First, use this connector as a bridge, install this connector to the output cord like this:
2. Then install the optional
Plug Tips you selected on the bridge connector like this:
DS Game Player Not Included.
iPod Not Included.
